In the last blog post, I realized there were a lot of methods inherited from the base struct _Vector_base_ and _Vector_impl_data. Instead of directly going to the source code of these structs, I’ll go through their methods and objects by explaining what happens when we initialize a vector.

That is, we will start from calling a vector constructor and then see how memory is allocated. If you haven’t looked at the previous blog post, please take a look here. I want to be thorough with the blog post, so I’ll divide this into multiple posts. By the end of this post, you’ll go through the following structs:

  1. _Vector_impl_data struct which contains pointers to memory locations (start, finish and end of storage).
  2. _Vector_impl struct (inherits _Vector_impl_data as well)).

I usually opt for the bottom-up approach. Vectors can be initialized in many ways, three of them will be discussed in today’s blog. We’ll start from the very basic constructor of a vector using an initializer list and slowly reach to memory allocation and how the above 2 structs are used. Let’s start!

Using Initializer Lists

So what happens when we initialize a vector with an initializer list?

std::vector<int> vec {1, 2, 3};

The vector class has many constructors in GCC depending on the type of inputs you give. Let’s take a look at the constructor when the input is an initializer list:

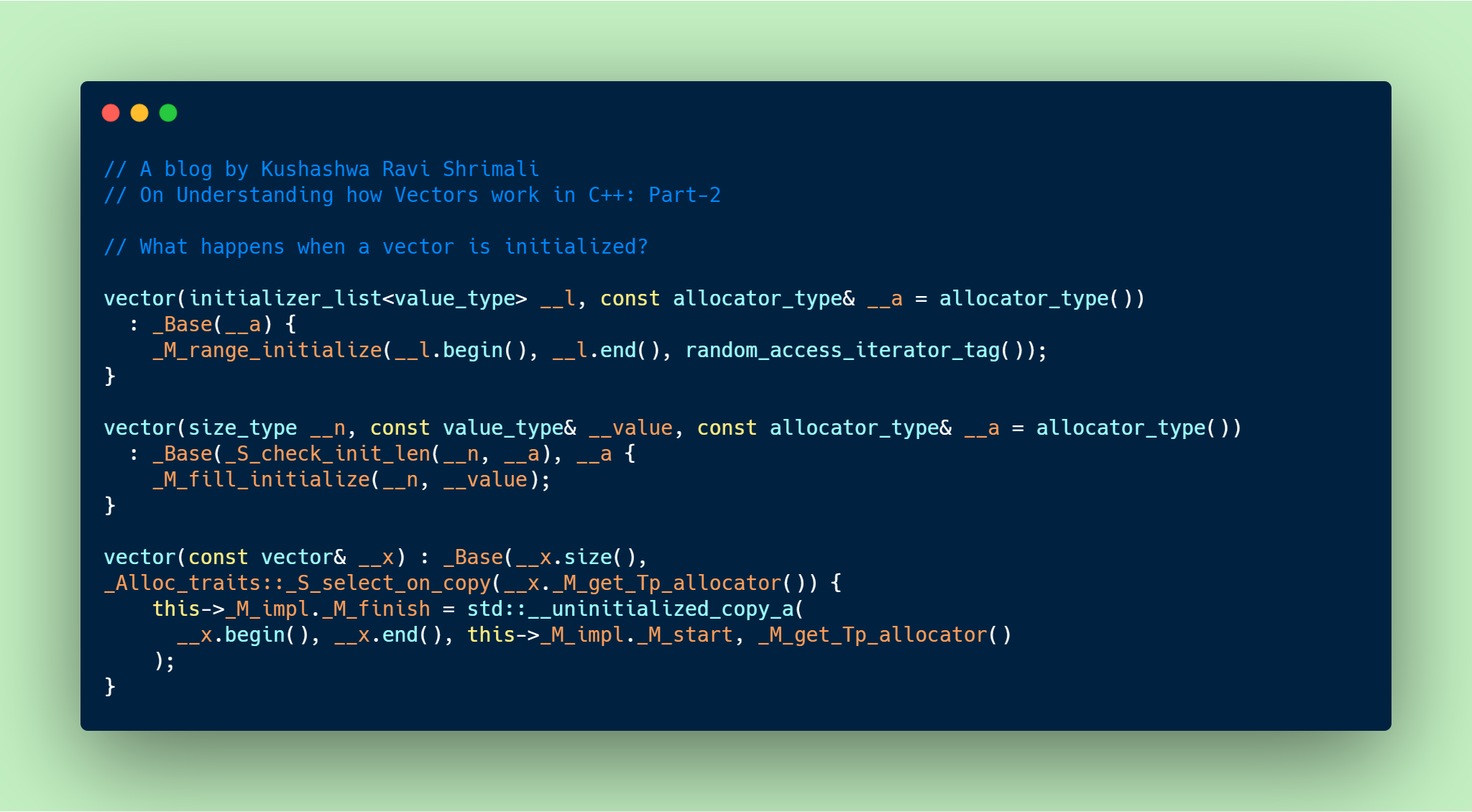

vector(initializer_list<value_type> __l, const allocator_type& __a = allocator_type()) : _Base(__a) {
    _M_range_initialize(__l.begin(), __l.end(), random_access_iterator_tag());
}

If you are curious what _Base is, _Base is declared as: typedef _Vector_base<_Tp, _Alloc> _Base;. Just so you know, where and how is _Vector_base used. When the constructor is called, it calls the constructor of _Vector_base with __a (allocator type). As you might have noticed, we are calling _M_range_initialize and passing 2 iterators (__l.begin(), __l.end()) and 1 forward iterator tag.

Note that the iterators are Forward Iterators, that is: we can use these iterators to access elements from begin (accessed using .begin()) till the end (accessed using .end()).

We are using random_access_iterator_tag as forward_iterator_tag. This tag helps us to categorize the iterator as random-access iterator. Random-access iterators allow accessing elements by passing arbitrary offset position (see: documentation for more details).

Let’s go ahead and see what _M_range_initialize does.

template <typename _ForwardIterator>
void _M_range_initialize(_ForwardIterator __first, _ForwardIterator __last, std::forward_iterator_tag) {
    const size_type __n = std::distance(__first, __last);
    this->_M_impl._M_start = this->_M_allocate(_S_check_init_len(__n, _M_get_Tp_allocator()));
    this->_M_impl._M_end_of_storage = this->_M_impl._M_start + __n;
    this->_M_impl._M_finish = std::__uninitialized_copy_a(__first, __last, this->_M_impl._M_start, _M_get_Tp_allocator());
}

Let’s go line by line.

  • First we find the distance using std::distance which takes first and last iterators, and returns size such as: __last = __first + size.
  • Next, we allocate memory for __n objects. The function this->_M_allocate returns pointer to the starting location of the memory allocated.
    static size_type _S_check_init_len(size_type __n, const allocator_type& __a)
    {
        if (__n > _S_max_size(_Tp_alloc_type(__a)))
        __throw_length_error(
            __N("cannot create std::vector larger than max_size()"));
        return __n;
    }

    • The function _S_check_init_len is called by constructors to check size. If the requested size is greater than the maximum size for the allocator type, it throws length error ("cannot create std::vector larger than max_size()"). Else, it returns __n.
    • Once we have validated the size, this->_M_allocate call allocates the memory. Note that, _M_allocate is a part of _Vector_base struct. _M_allocate allocates memory for __n number of objects. This returns a pointer to the memory location (starting), to _M_start.
    • The end of storage pointer stores the end of memory location for the memory allocated for __n objects.
    • The function std::__uninitialized_copy_a copies the range [__first, __last) into the this->_M_impl._M_start. This returns a pointer to memory location starting at this->_M_impl._M_start with length of __first - __last.

To summarize, when we initialized vector with initializer list:

  1. It first calculates the number of objects to allocate memory for. This is assigned to __n.
  2. Then, memory is allocated for __n objects (including a check if this much memory can be allocated based on the allocator type, if not then it returns a length error). The pointer _M_start points to the starting memory location.
  3. The end of storage is the end location of the storage. Since we have passed the initializer list, so it knows the end of storage is starting location + len(initializer_list).
  4. The elements are then copied the range [__first, __last) into the memory allocated.

Depending on how you initialize your vectors, the process may change but overall, the intention is the same: to allocate memory (if valid) and set pointers (start, end of storage and finish).

Using similar value and specified number of elements (fill)

Let’s take a look at an example of using

std::vector<int> vec(10, 0);

The above constructor call will give you a vector of 10 elements with all zeros. You can print the elements using:

// Instead of using auto, we can use
// for (std::vector<int>::iterator it = vec.begin(); it != vec.end(); it++) {
//     std::cout << *it << " ";
// }
for (auto it = vec.begin(); it != vec.end(); it++) {
    std::cout << *it << " ";
}
std::cout << std::endl;

Let’s see what changes when the vector is constructed in the above mentioned way. Let’s take a look at the constructor which is called:

vector(size_type __n, const value_type& __value, const allocator_type& __a = allocator_type()) : _Base(_S_check_init_len(__n, __a), __a {
    _M_fill_initialize(__n, __value);
}

As the documentation of the above constructor explains, this constructor fills the vector with __n copies of __a value. Note the use of _S_check_init_len here (we discussed this before). Instead of calling _M_range_initialize, _M_fill_initialize is called here. For our example, this function is passed with values: 10 (__n) and 0 (__value). Let’s take a look at the definition of _M_fill_initialize:

void _M_fill_initialize(size_type __n, const value_type& __value) {
    this->_M_impl._M_finish = std::__uninitialized_fill_n_a(this->_M_impl._M_start, __n, __value, _M_get_Tp_allocator());
}

The call __uninitialized_fill_n copies the value (__value, here 0) into the range [this->_M_impl._M_start, this->_M_impl._M_start + __n) and returns the end of it’s range. As per the documentation, it is similar to fill_n() but does not require an initialized output range. Wait, you might be wondering, we didn’t initialize this->_M_impl._M_start! We did! Note that we called _Base(_S_check_init_len(__n, __a) when the constructor is called. _Base is nothing but a typedef of _Vector_base. Let’s take a look at this call:

_Vector_base(size_t __n) : _M_impl() {
    _M_create_storage(__n);
}
  • _M_impl is an object of type _Vector_impl declared in _Vector_base struct.
  • _M_create_storage(__n) is defined as:
    void _M_create_storage(size_t __n) {
        this->_M_impl._M_start = this->_M_allocate(__n);
        this->_M_impl._M_finish = this->_M_impl._M_start;
        this->_M_impl._M_end_of_storage = this->_M_impl._M_start + __n;
    }

    This will answer most of your queries. Let’s start line by line.
    • this->_M_allocate(__n) was discussed before, which allocates memory for __n objects. Please note that the constructor call _M_impl() had initialized these pointers for us. Here, the pointer is set to the starting memory location.
    • Since the function _M_create_storage creates storage, and doesn’t copy elements to the memory location. So this->_M_impl._M_finish is set to this->_M_impl._M_start.
    • The end of storage is, as before, set to this->_M_impl._M_start + __n.

So, eventually, it’s quite similar to what we saw when we initialized our vector with initializer list.

Using another vector (copy)

Let’s take a look at another way to another initalize a vector:

std::vector<int> vec_copy {1, 2, 3};
std::vector<int> vec(vec_copy);

// Try printing the elements of vec
for (auto it = vec.begin(); it != vec.end(); it++) {
    std::cout << *it << std::endl;
}

When you call vec(vec_copy), the copy constructor is called. Let’s take a look at it’s definition:

vector(const vector& __x) : _Base(__x.size(), _Alloc_traits::_S_select_on_copy(__x._M_get_Tp_allocator()) {
    this->_M_impl._M_finish = std::__uninitialized_copy_a(__x.begin(), __x.end(), this->_M_impl._M_start, _M_get_Tp_allocator());
}

The function body is similar to what we saw in the constructor definition when we initialized vector using size_type __n, value_type value. Notice how we initialize the base struct here. Let’s take a look at _S_select_on_copy(__x._M_get_Tp_allocator()) first. _M_get_Tp_allocator() returns _M_impl object.

const _Tp_alloc_type& _M_get_Tp_allocator() {
    return this->_M_impl;
}

Note that, here, this->_M_impl will already have the pointers set to the memory locations for start, finish and end of storage (as we use the allocator of __x). The objective is to use the copy of allocator object used by __x. Let’s take a look at the constructor of Base struct:

_Vector_base(size_t __n, const allocator_type& __a) : _M_impl(__a) {
    _M_create_storage(__n);
}

Overall, it’s the same to what we saw before except that we use the copy of the alloactor of vector __x. The call _M_create_storage(__n) does the same task of setting pointers _M_start, M_end_of_storage, _M_finish as we observed before.

For today’s blog, we discussed 3 popular ways to initialize a vector in C++ and went through how memory is allocated when the constructors are called. As we move forward, we will slowly get familiar with the design patterns and methods used in GCC.

As always, I would love to hear your feedback on my blogs. Correct me if I was wrong anywhere, no one is perfect afterall. If this helped you, please let me know - it keeps me going! See you all in the next blog!
