Scoped vs Unscoped Enums

  • General rule: declaring a name inside curly braces is limited to that scope.
  • Exception: C++-98 style Enums


NOTE

My notes on Chapter 3, Item 10 of Effective Modern C++ written by Scott Meyers.

Some (or even all) of the text can be similar to what you see in the book, as these are notes: I’ve tried not to be unnecessarily creative with my words. :)

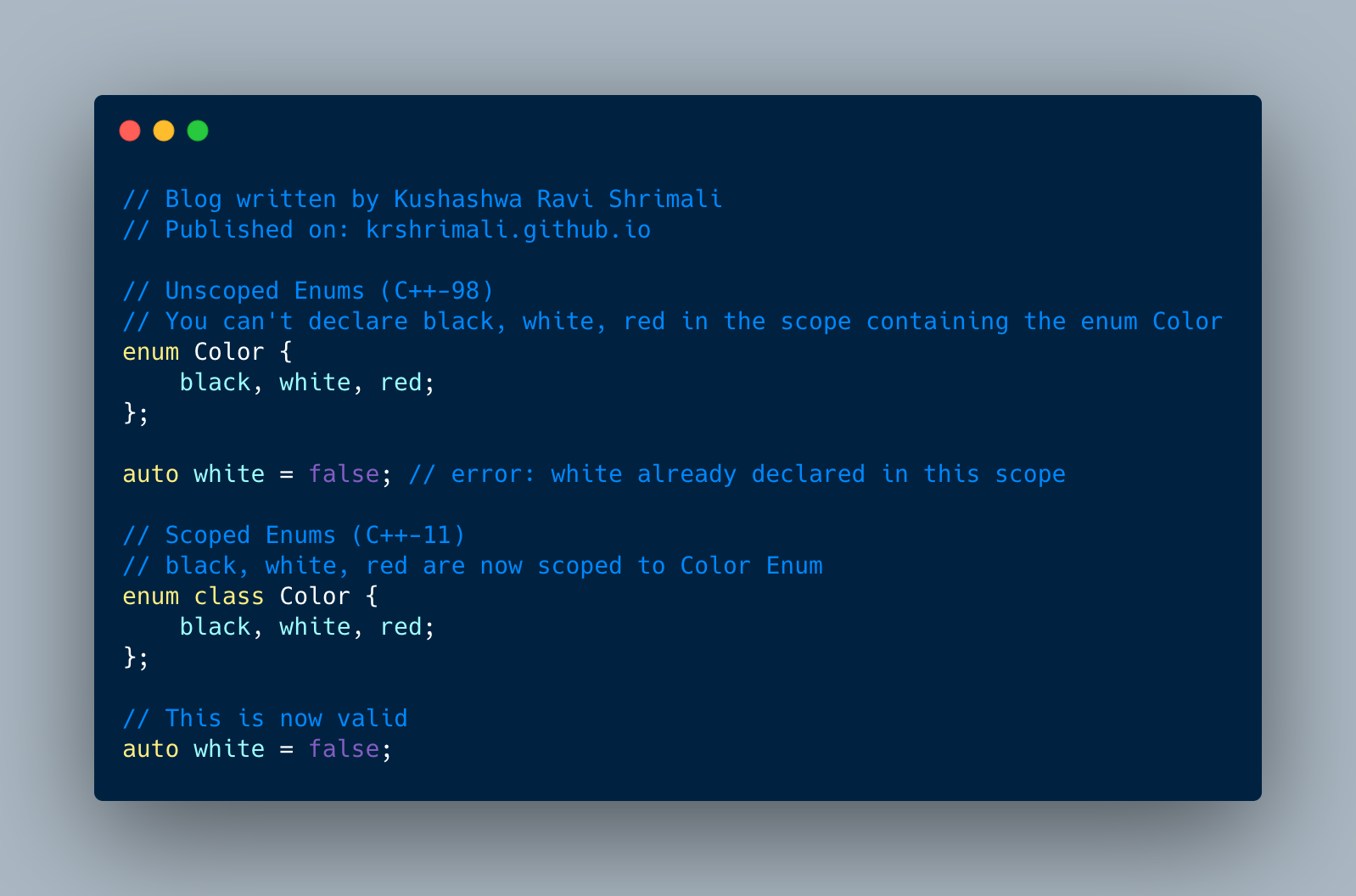

// You can't declare black, white, red in the scope containing the enum Color
enum Color {
    black, white, red;
};

auto white = false; // error: white already declared in this scope
  • Unscoped Enums have implicit type conversions for their enumerators.
  • Enumerators can implicitly convert to integral types, and then to floating-point types.
// Assume Color is declared like above
Color c = red; // valid since Enumerator white is leaked to the scope Color is in
if (c < 10) {  // valid, implicit conversion
    // ... do something
}
else if (c < 10.5) {  // also valid, implicit conversion
    // ... do something
}

The C++-98 Style Enums are termed as Unscoped Enums (because of leaking names).

C++-11 Scoped Enums:

// black, white, red are now scoped to Color Enum
enum class Color {
    black, white, red;
};

// This is now valid
auto white = false;

Separately, if you do: (consider Color Enum has already been declared)

Color c = white; // error: no enumerator named "white" is in this scope
Color c = Color::white; // valid
auto c = Color::white; // valid
  • Also referred as enum classes (because declared using enum class).
  • Enumerators in scoped Enums are strongly typed (no implicit type conversion)
// Assume Color is declared as above using enum class
Color c = Color::red;

if (c < 10.5) {  // Error! can't compare Color and double
    // do something...
}

Note: you can do explicit casting using cast. Note about enums in C++: * Every enum in C++ has an integral underlying type that is determined by compilers. * Compilers need to know the size of enum before using it.

C++98 vs C++11 on Enums

C++98:

  • Unscoped enums can not be forward-declared.
    • Hence only enums with definitions are supported.
    • Allows compilers to choose underlying type for each enum prior to the enum being used.
  • Drawbacks?
    • Increase in compilation dependencies: wherever the enum is used, even if not affected by any addition in the enum, it will be recompiled (generally speaking, that is without any tweaks/optimizations).

C++11:

  • Both unscoped and scoped enums can be forward-declared. Unscoped enums will need a few efforts though:
/* For Scoped Enums */

// Default underlying type is int
enum class Status;
// Override it
enum class Status: std::uint32_t;

/* For Unscoped Enums */

// There is no underlying type for unscoped enum
// You can manually specify though
enum Status: sd::uint32_t;

These specifications for underlying types can also go on enum’s definitions.

Unscoped Enums over Scoped Enums?

Imagine when you have a code like this:

// Ordered as: name, email, reputation
using UserInfo = std::tuple<std::string, std::string, std::size_t>;

UserInfo uInfo;

// This is not clear to the reader, you can't always remember what 1st indexed field in UserInfo is
auto val = std::get<1>(uInfo);

Using the property of intrinsic conversion in unscoped enums, you can solve this:

enum InfoFields { uName, uEmail, uReputation };

// UserInfo defined as above
UserInfo uInfo;

// Implicit conversion of int (default underlying type of enums) to std::size_t (that's what std::get takes)
auto val = std::get<uEmail>(uInfo);

For scoped enums though, you’ll have to use static_cast<std::size_t>(InfoFields::uEmail) instead of just uEmail (for unscoped enums) passed to std::get, which is less readable. But…

This can be redued by using a custom function which: * takes: enum * returns: corresponding std::size_t value

std::get is a template, and the value needs to be understood during compilation only, so the function should be a constexpr (more on this later in the series).

To generalize, let’s keep the enum’s underlying type (std::underlying_type type trait)

// Using noexcept because we know there'll be no exceptions raised
template <typename E>
constexpr typename std::underlying_type<E>::type toUType(E enumerator) noexcept {
    return static_cast<typename std::underlying_type<E>::type>(enumerator);
}

From the previous blog, we know that in C++14, we could have simplified by writing:

// Using noexcept because we know there'll be no exceptions raised
template <typename E>
constexpr std::underlying_type_t<E> toUType(E enumerator) noexcept {
    return static_cast<std::underlying_type_t<E>>(enumerator);
}

Could have used auto for return type in C++14:

// Using noexcept because we know there'll be no exceptions raised
template <typename E>
constexpr auto toUType(E enumerator) noexcept {
    return static_cast<std::underlying_type_t<E>>(enumerator);
}

Now this can be used as:

// Reminder, InfoFields was defined as:
enum InfoFields { uName, uEmail, uReputation };

// toUType is defined above
auto val = std::get<toUType(InfoFields::uEmail)>(uInfo);

Good Reads

  1. Forward Declaration:
  2. Are Unscoped Enums still helpful?
  3. Proposal for forward declaration to enums (accepted), dated 2008: http://www.open-std.org/jtc1/sc22/wg21/docs/papers/2008/n2764.pdf
  4. Forward Declaring an Enum in C++?

Acknowledgement (Reviews)

Thanks to Kshitij Kalambarkar for helping in reviewing the blog. It’s always helpful to get another set of eyes to what you write. :)

That’s it for this blog, thank you for reading everyone!
